Build with the SDK
For developers, OEMs, and system integrators building their own software.
- ESUMEI G3 hardware
- Public hardware documentation
- Python SDK
- RS-485/Modbus starting point
ESUMEI / Industrial Monitoring Platform
Field Devices → Edge → Cloud
Industrial data, from field to cloud.
ESUMEI G3 connects to RS-485/Modbus field devices. ESUMEI OS acquires and buffers the data at the edge. ESUMEI Cloud makes it available anywhere — or build your own path with the Python SDK.
RS-485 / Modbus
Local Buffering
Cellular Backhaul
01Overview
One platform, three layers
Field meters connect to ESUMEI G3. ESUMEI OS runs the edge logic. ESUMEI Cloud makes the data available anywhere — or build your own path with the SDK.
-
FieldField Devices
RS-485 / Modbus meters
Compatible multifunction meters and industrial instruments.
-
HardwareESUMEI G3
The controller
Acquires, buffers, and manages connectivity for the site.
-
Edge SoftwareESUMEI OS
Runs on the controller
Polls, normalizes, and forwards data — resilient to outages.
-
Cloud ServiceESUMEI Cloud
Managed monitoring
Remote visibility, controller health, alerts, and provisioning.
-
Your SystemsDashboards & APIs
Wherever you work
Customer dashboards, integrations, or monitoring systems.
Developer path
ESUMEI G3 + Python SDK
→
Your own software or cloud integration
Choose how you deploy
Deploy with ESUMEI OS
For customers who want the controller with a ready edge-software layer.
- Supported meter templates
- Data normalization
- Local buffering
- Connectivity handling
Operate with ESUMEI Cloud
For an end-to-end managed monitoring service.
- Remote visualization & data access
- Controller-health visibility
- Alerts & provisioning
- Managed update coordination
Pricing: separately quoted.
Compare What's Included
| Included | SDK | OS | OS + Cloud |
|---|---|---|---|
| Hardware | |||
| ESUMEI G3 controller | Included | Included | Included |
| Hardware documentation & user guide | Included | Included | Included |
| Firmware & Edge Processing | |||
| Firmware / OS | Python SDK | ESUMEI OS | ESUMEI OS |
| Bootloader & base firmware | Included | Included | Included |
| Modbus meter templates (e.g. Schneider, Eastron, Selec) | Self-implemented | Included | Included |
| Meter polling & configuration | Self-implemented | Included | Included |
| Resilient local buffering | Self-implemented | Included | Included |
| Standardized electrical data model | Self-implemented | Included | Included |
| MQTT / HTTPS connector | Self-implemented | Included | Included |
| Cloud, Connectivity & Support | |||
| OTA firmware updates | Self-implemented | Customer-managed | Quoted |
| Alerts & notifications | Self-implemented | — | Quoted |
| Controller health monitoring | Self-implemented | — | Quoted |
| Connectivity management | Self-implemented | — | Quoted |
| Multifunction meter integration | Self-implemented | — | Quoted |
| Zero-touch provisioning | — | — | Quoted |
| Geolocation & asset tagging | — | — | Quoted |
| Support | Community | Standard | Direct from Anietronic |
Package scope is defined by the applicable quotation or order. Cloud hosting, managed OTA, telecommunications, installation, custom engineering, fleet operations and service levels are included only where expressly stated.
02Hardware

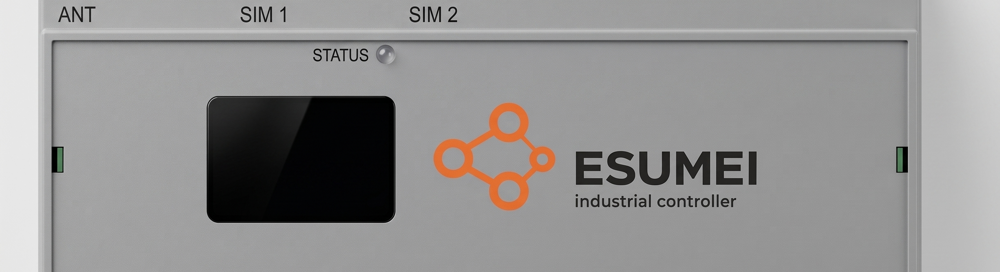

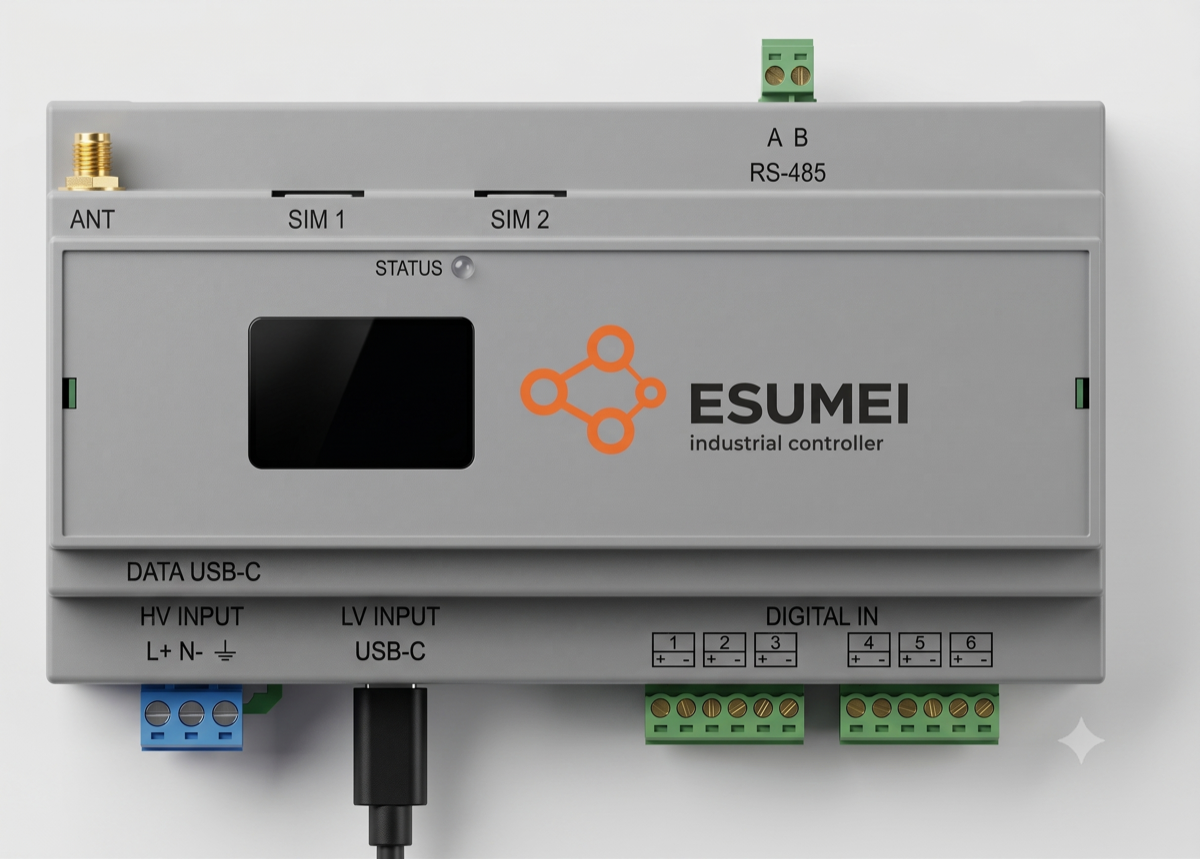

ESUMEI G3
The industrial controller at the center of the platform — connects to compatible meters, acquires data, buffers it locally, and communicates with remote systems.

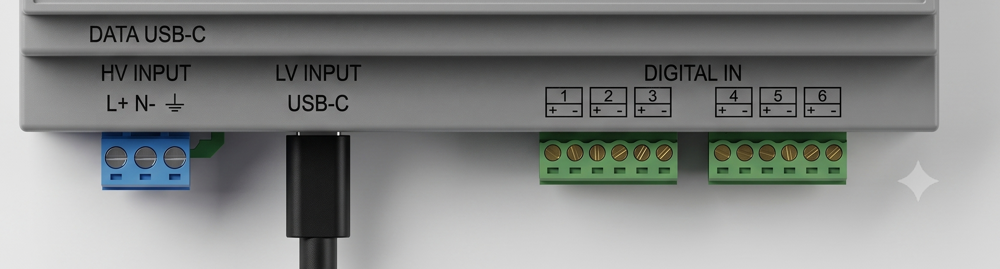

24–240 VAC / 24–375 VDC + USB-C 5 VDC
4G LTE Cat-1bis + 2G Fallback
Dual SIM
Isolated RS-485 / Modbus
Integrated Battery Backup
Local Store-and-Forward Buffering
DIN-Rail Deployment
03Comparison
How ESUMEI G3 Compares
A factual, deployment-focused comparison against four other industrial RTU/controller products. Figures are drawn from manufacturer datasheets and public distributor pricing — see Technical Specifications for full ESUMEI G3 sourcing notes.
| Characteristic | ESUMEI G3 | Advantech ICR-3241W |
Robustel EG5120 |
ICP DAS RTU-540P-NB |
Siemens RTU3030C |
|---|---|---|---|---|---|
| Connectivity | |||||
| Cellular network support | 4G LTE Cat-1bis, 2G fallback | 4G LTE (Cat.4) | 5G / 4G / 3G / 2G | NB-IoT (Cat-NB1) | 2G/3G (GPRS/UMTS) |
| Dual SIM | Yes | Yes | Yes | Not listed | No |
| RS-485 / Modbus | Yes — isolated | Yes — via Router App | Yes | Yes | No — DNP3/IEC104 |
| Power | |||||
| AC input range | 24–240 VAC | No — DC only | No — DC only | No — DC only | No — DC only |
| DC input range | 24–375 VDC | 9–36 VDC | 9–60 VDC | 10–30 VDC | 12–24 VDC |
| Low-voltage input | USB-C, 5 VDC up to 3 A | Not listed | Not listed | Not listed | Not listed |
| Backup battery | Integrated Li-ion | RTC battery only | Not listed | Yes — Li-ion (unlisted) | Optional — accessory |
| Storage & Mounting | |||||
| Storage | NOR Flash | eMMC | eMMC | microSD | Optional SD card |
| Operating temperature | −20°C to +70°C | −40°C to +75°C | −40°C to +70°C | −25°C to +75°C | −40°C to +70°C |
| DIN-rail mounting | Yes | Yes — accessory | Yes | Not listed | Yes |
| Commercial | |||||
| List price | $1,150 | ~$627 | ~$878 | ~$1,099 | ~$1,766 |
Public competitor pricing shown for comparison and may vary by configuration, region and supplier. "Not listed" means the manufacturer's published documentation does not clearly establish the value — it is not a claim that the capability is absent.
Built for mixed-generation networks
ESUMEI G3 uses 4G LTE Cat-1bis for primary connectivity with 2G fallback, helping remote deployments remain reachable at sites where LTE is unavailable but a 2G network is still in service.
This can be particularly useful for industrial and utility assets deployed across regions where multiple generations of mobile infrastructure remain operational.
04Edge Software
ESUMEI OS
The edge software running on every ESUMEI G3 — acquisition, buffering, and connectivity, handled at the site.
01
Poll
Reads compatible RS-485/Modbus devices using meter templates.
02
Normalize
Converts readings into a standardized electrical data model.
03
Buffer
Resilient local storage — store-and-forward through outages.
04
Connect
Manages cellular connectivity, outbound-only and TLS-encrypted.
05
Forward
Sends data to configured destinations over MQTT or HTTPS.
Backfill After Outages
Buffered readings drain in order once connectivity returns.
Validated Before Applying
Config changes are checked before they take effect.
Remote Configuration
Supported meters and connectivity, configured remotely where supported.
05Managed Cloud Service
ESUMEI Cloud
The managed service that receives, organizes, and visualizes data from deployed ESUMEI controllers.
ESUMEI Cloud
Deployed controllers reporting into one managed service — organization shown abstractly, not real customer data.
Consume & Visualize
Remote data access and visualization for deployed controllers.
Organize & Provision
Controller and device organization, provisioning, and asset identification.
Alerts & Updates
Alerts, notifications, and managed update coordination.
06Feeder Monitoring
Feeder Monitoring Bundles
ESUMEI G3 with a compatible feeder meter, in three accuracy classes. Pair any class with the SDK, ESUMEI OS, or ESUMEI OS + Cloud — see Overview for software options.
Class 1
Cost-sensitive feeder monitoring.
Class 0.5S
Standard feeder visibility.
Class 0.2S
High-stakes measurement points.
Complete Deployment Package
Plug-and-play install: enclosure and protection wired and ready, on any accuracy class above.
Compare Feeder Meter Classes
| Feeder Bundle | Class 1 | Class 0.5S | Class 0.2S |
|---|---|---|---|
| Meter | |||
| Meter tier | DR-Standard | PM-Advanced | PM-Precision |
| Mounting | DIN-Rail | Panel Mount | Panel Mount |
| Energy accuracy class | Class 1 | Class 0.5S | Class 0.2S |
| Deployment | |||
| Controller | ESUMEI G3 | ESUMEI G3 | ESUMEI G3 |
| Software options | SDK / OS / OS + Cloud | SDK / OS / OS + Cloud | SDK / OS / OS + Cloud |
| Deployment package | Available | Available | Available |
| Recommended when | Cost-sensitive sites | Standard feeder visibility | High-stakes measurement points |
Meter tier and configuration details are confirmed with Anietronic at quotation.
07Resources
Resources
Developer resources and reference documentation.
ESUMEI G3 Technical Specification
Confirmed hardware specifications.
ESUMEI G3 Python SDK
For building your own software or cloud integration.
ESUMEI G3 User Guide
Installation, wiring, and configuration reference.
Available to customers and approved partners upon request.
ESUMEI OS Documentation
Edge software configuration, diagnostics, and telemetry.
Available to customers and approved partners upon request.
Additional technical documentation beyond what's listed here is available from Anietronic on request — see Contact.
08Order
Order online / request a quote
An inquiry form, not a checkout — ESUMEI offers are quoted based on configuration and site requirements. Submitting this form does not place an order or transmit a payment.
09Contact
Keep telemetry flowing.
Talk to Anietronic about ESUMEI G3, ESUMEI OS, ESUMEI Cloud, or a feeder-monitoring deployment.
